Description

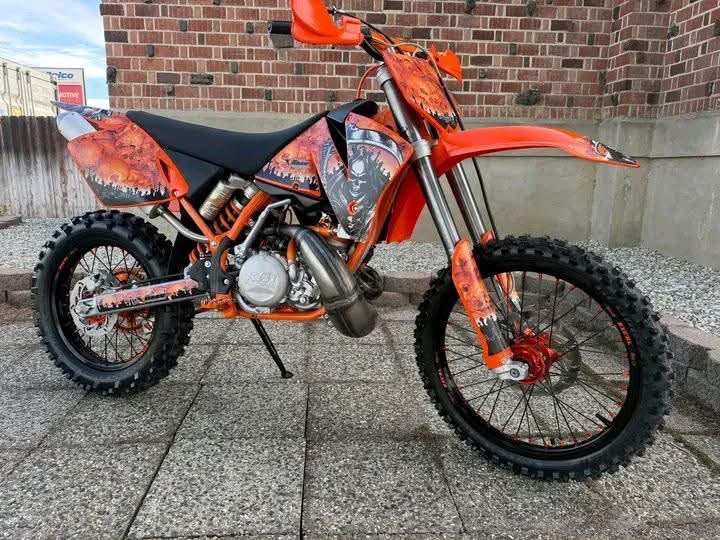

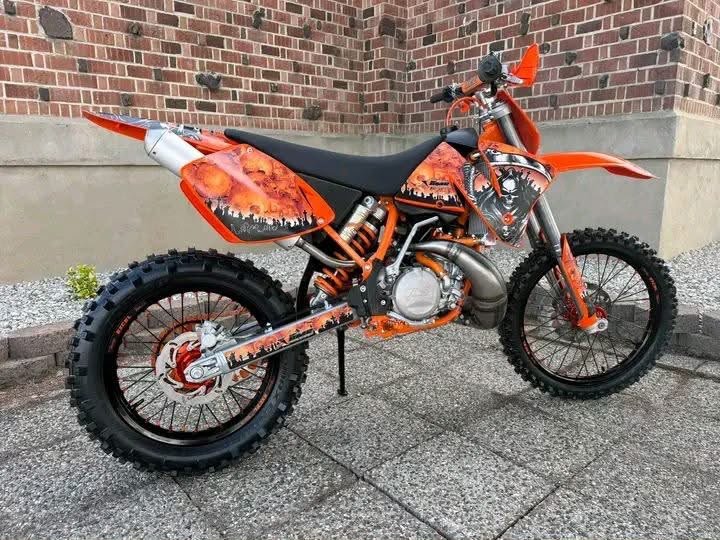

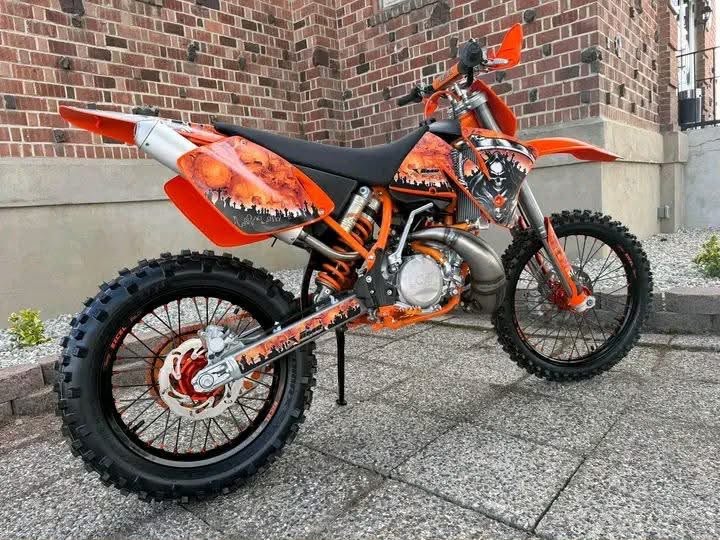

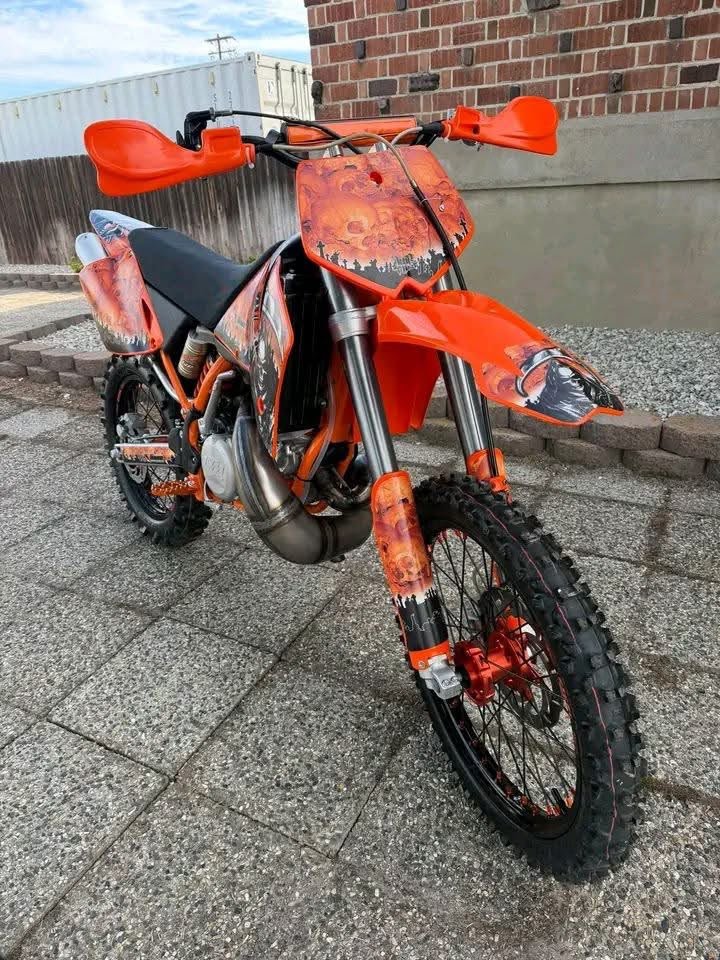

2010 KTM EXC 125 2-Stroke Enduro

The 2010 KTM EXC 125 2-Stroke Enduro is a lightweight competition-oriented motorcycle designed for riders who want responsive two-stroke performance, agile handling and serious off-road capability. Powered by a 124.8cc liquid-cooled single-cylinder two-stroke engine, the 125 EXC combines a six-speed gearbox with WP suspension and a chrome-molybdenum steel chassis developed for demanding enduro terrain.

The KTM EXC 125 is particularly suited to riders who value low weight, quick direction changes and an engaging two-stroke power delivery. Its 21-inch front and 18-inch rear wheel combination, long suspension travel and enduro-focused chassis make it appropriate for trails, technical terrain and organized off-road riding.

⸻

2010 KTM EXC 125 Specifications

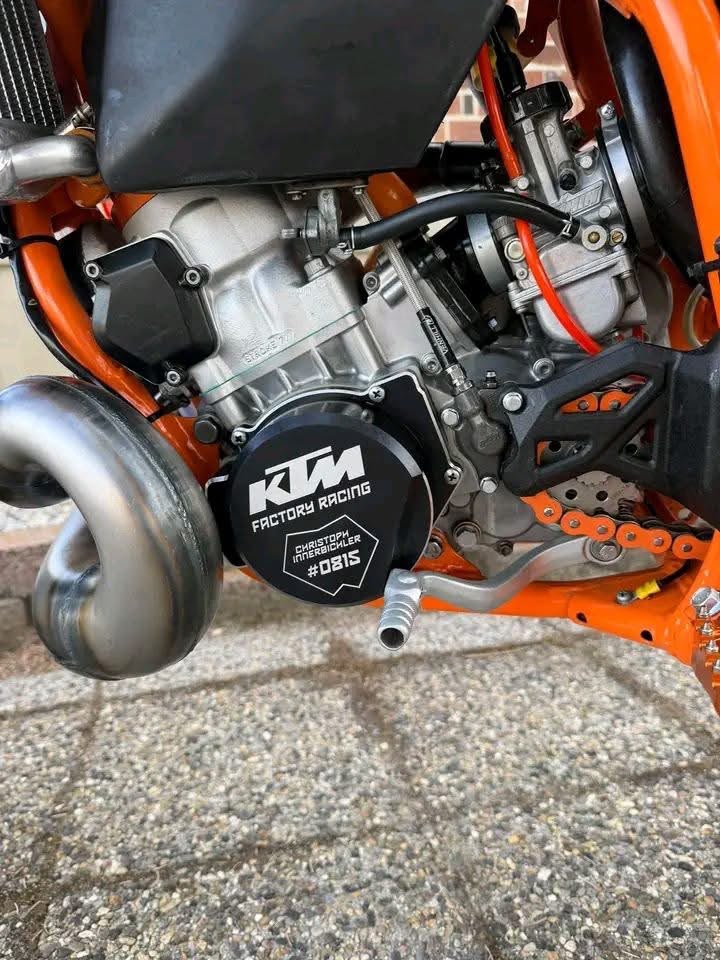

The 2010 KTM EXC 125 uses a 124.8cc, single-cylinder, water-cooled two-stroke engine with reed intake and exhaust control. KTM’s 2010 owner’s manual specifies a 54 mm bore, 54.5 mm stroke, Keihin PWK 36S AG carburetor and six-speed transmission.

Engine & Drivetrain

* Engine: Single-cylinder 2-stroke
* Displacement: 124.8cc
* Bore: 54 mm
* Stroke: 54.5 mm
* Cooling: Liquid-cooled
* Induction: Reed intake
* Carburetor: Keihin PWK 36S AG
* Transmission: 6-speed
* Clutch: Wet multi-disc, hydraulically operated
* Starting system: Kick starter
* Final drive: Chain
* Fuel: Super unleaded gasoline mixed with 2-stroke oil
* Fuel/oil mixture specified in the 2010 manual: approximately 1:60

These specifications come from KTM’s 2010 documentation.

⸻

Chassis & Suspension

The exc 125 ktm platform was built around a chrome-molybdenum steel frame and WP suspension components designed for off-road use.

* Frame: Chrome-molybdenum steel tubing
* Front suspension: WP Suspension USD 4860 MXMA PA
* Front fork diameter: 48 mm
* Front suspension travel: 300 mm
* Rear suspension: WP PDS 5018 DCC
* Rear suspension travel: 335 mm
* Wheelbase: 1,471 mm
* Ground clearance: approximately 390 mm
* Seat height: approximately 985 mm
* Dry weight: approximately 97 kg
* Fuel capacity: 9.5 liters

KTM’s manual specifies 300 mm of front travel and 335 mm at the rear, while the 2010 specification data lists the 1,471 mm wheelbase, approximately 985 mm seat height and 97 kg dry weight.

⸻

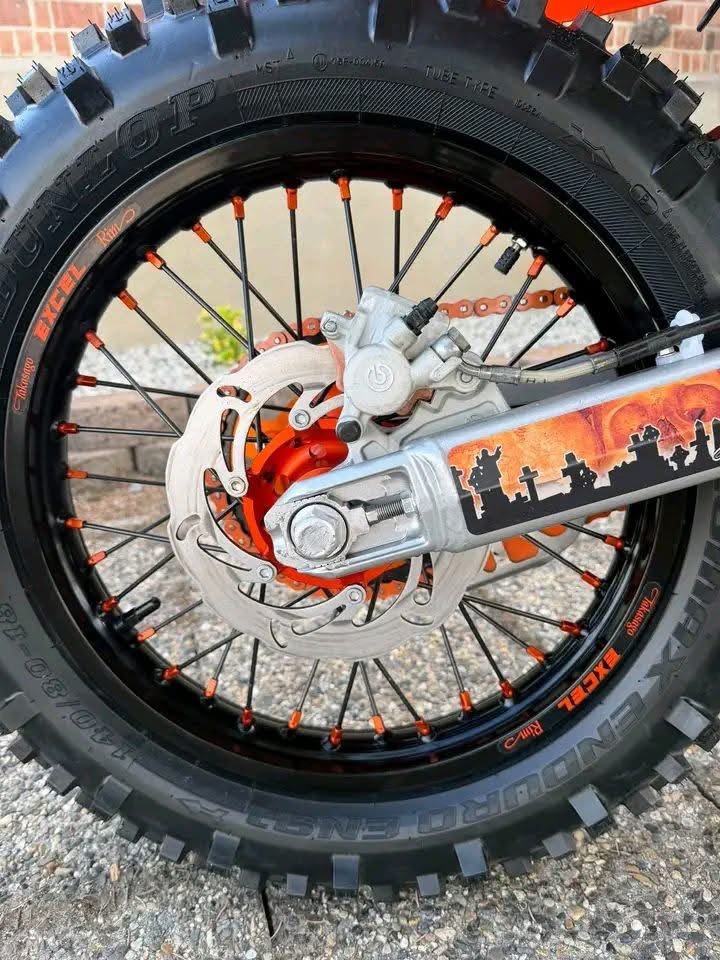

Wheels, Tires & Brakes

The 2010 KTM EXC 125 uses the traditional enduro wheel configuration:

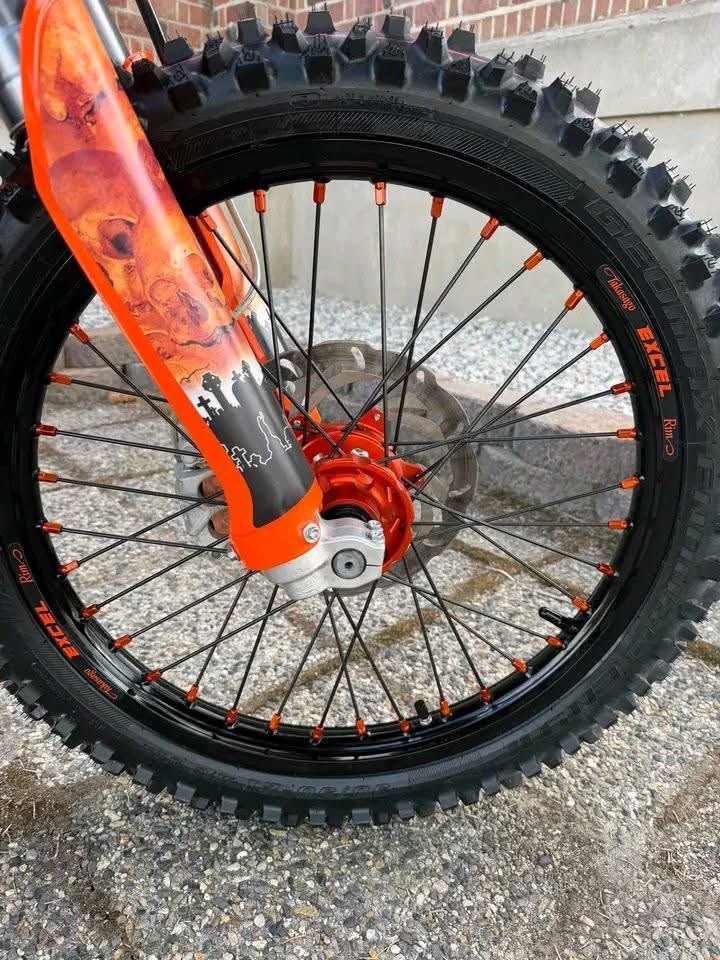

* Front wheel: 21-inch
* Rear wheel: 18-inch
* Front tire: 90/90-21
* Rear tire: 120/90-18
* Front brake: Single disc
* Rear brake: Single disc

The 21/18-inch wheel combination is designed to help the motorcycle handle uneven terrain, rocks, roots, ruts and other off-road obstacles.

⸻

What Makes the KTM EXC 125 Different?

The KTM EXC 125 occupies a distinctive place in the enduro category because it combines a small-displacement two-stroke engine with a full-size enduro chassis.

Instead of relying on large engine displacement to produce performance, the 125 EXC is built around low weight, high-revving two-stroke characteristics, a close-ratio six-speed transmission and long-travel suspension.

For riders who enjoy actively working the gearbox and maintaining engine momentum, this configuration can provide an engaging riding experience on technical trails and enduro terrain.

⸻

Where Can You Ride a 2010 KTM EXC 125?

The motorcycle is designed primarily around off-road and enduro riding.

Typical applications can include:

* Enduro trails
* Forest riding where legally permitted
* Dirt trails
* Technical off-road sections
* Private riding areas
* Organized enduro events
* Closed-course off-road riding
* Recreational trail riding

Important: Whether a particular 2010 KTM EXC 125 can legally be operated on public roads depends on its homologation, registration, equipment, jurisdiction and the condition of the individual motorcycle. KTM’s documentation distinguishes the homologated road configuration from derestricted versions, so buyers should verify local requirements before using one on public roads. For additional manufacturer information, visit the KTM official website.

⸻

Advantages of the 2010 KTM EXC 125

Lightweight Enduro Platform

At approximately 97 kg dry, the 125 EXC provides a relatively lightweight platform for an adult-size enduro motorcycle. Lower mass can be particularly useful when maneuvering through technical terrain or recovering the motorcycle after a fall.

Responsive 2-Stroke Engine

The 124.8cc two-stroke engine is compact and designed around an engaging power delivery. Its 54 mm × 54.5 mm bore and stroke and exhaust-control system are part of the engine architecture documented by KTM.

Long-Travel Suspension

With 300 mm of front travel and 335 mm of rear travel, the suspension is designed around the demands of uneven off-road terrain.

Full-Size Enduro Wheels

The 21-inch front and 18-inch rear wheels are a conventional enduro configuration, providing the geometry and tire selection expected for serious off-road use.

Six-Speed Transmission

The six-speed gearbox gives the rider multiple ratios for controlling engine speed across different sections of terrain. KTM’s 2010 manual confirms the six-speed configuration.

⸻

What Should Buyers Check Before Buying a Used KTM EXC 125?

A used two-stroke enduro motorcycle should be evaluated mechanically rather than judged only by appearance.

Engine Condition

Check for:

* Easy starting
* Consistent idle
* Abnormal engine noises
* Excessive smoke
* Coolant leaks
* Gearbox operation
* Clutch operation
* Evidence of previous top-end work
* Condition of the exhaust system

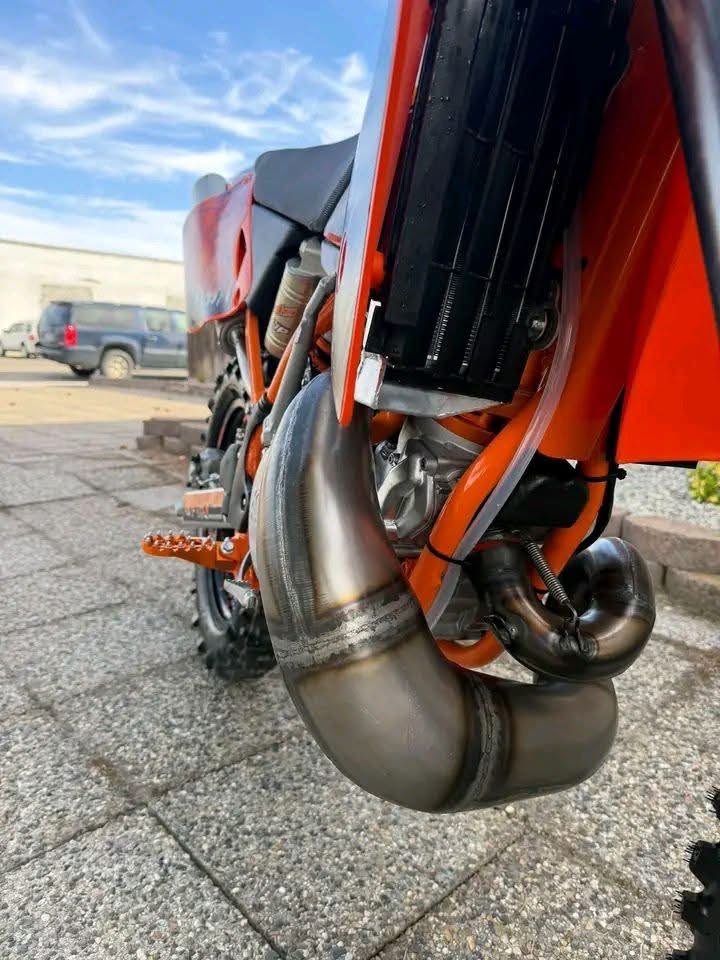

Cooling System

Inspect the radiators, hoses, coolant level and surrounding components for damage or leaks. Enduro motorcycles can experience impacts from rocks, branches and falls, so radiator condition deserves particular attention.

Suspension

Inspect the fork tubes and seals for oil leakage and check the rear shock for leaks or damage. Also check whether the suspension has been serviced according to the motorcycle’s use.

Frame & Chassis

Look carefully for:

* Cracks
* Weld repairs
* Bent components
* Damaged subframe
* Excessive corrosion
* Loose steering-head bearings
* Damaged footpeg mounts

Chain, Sprockets & Wheels

Check the chain, sprocket teeth, wheel bearings, spokes and rims. Heavy off-road use can place considerable stress on these components.

VIN & Model Verification

Before purchasing, verify the motorcycle’s VIN/chassis number and compare it with the registration/title and model documentation.

KTM’s 2010 owner’s manual states that the chassis number is stamped on the right side of the steering head and identifies the type-label location at the front of the steering head. Buyers can also use the KTM parts finder to research model-specific components and parts information.

⸻

Maintenance Considerations for a 2-Stroke Enduro

A two-stroke enduro motorcycle requires regular attention, particularly when ridden frequently in mud, sand, dust or demanding terrain.

Important maintenance areas include:

* Air-filter cleaning and inspection
* Chain cleaning and lubrication
* Gear-oil servicing
* Cooling-system checks
* Spark-plug inspection
* Brake inspection
* Wheel-bearing inspection
* Spoke and rim checks
* Suspension inspection
* Carburetor condition
* Exhaust-system inspection
* Top-end condition

KTM’s 2010 manual contains dedicated maintenance procedures covering the air filter, gear oil, carburetor, cooling system, brakes, suspension and other components. For detailed maintenance information, refer to the KTM 2010 owner’s manual.

⸻

Is the KTM EXC 125 Suitable for Beginners?

The 125 EXC can be attractive to riders entering serious off-road riding because of its relatively low displacement and lightweight chassis. However, it is still a competition-oriented enduro motorcycle with substantial suspension travel, a tall seat and two-stroke power characteristics.

A new rider should consider:

* Riding experience
* Physical size and reach
* Local riding environment
* Training
* Protective equipment
* Motorcycle condition
* Availability of suitable legal riding areas

The most important consideration is matching the motorcycle to the rider’s experience and intended type of riding rather than choosing a motorcycle based solely on engine size.

⸻

2010 KTM EXC 125 vs. Other Enduro Motorcycles

The 2010 KTM EXC 125 is best understood as a lightweight two-stroke enduro motorcycle rather than as a street-oriented motorcycle.

Its defining characteristics include:

* 124.8cc two-stroke engine
* 6-speed transmission
* Lightweight chassis
* 48 mm WP USD front suspension
* WP PDS rear suspension
* 21/18-inch enduro wheels
* Long suspension travel
* Kick-start system

This combination makes the 2010 KTM EXC 125 particularly relevant to buyers looking specifically for a traditional two-stroke enduro platform. Explore our Motor Bikes for Sale collection to see other motorcycles available from our range.

⸻

Why Buy a 2010 KTM EXC 125?

The appeal of a 2010 KTM EXC 125 comes from its combination of a lightweight chassis, two-stroke engine and purpose-built enduro hardware.

For the right rider and riding environment, it offers a focused off-road package with a 124.8cc liquid-cooled engine, six-speed transmission, WP suspension and full-size enduro wheels.

Because this is an older motorcycle, condition is especially important. Service history, engine condition, suspension condition, chassis integrity and VIN documentation should all be considered before purchase.

Specification	2010 KTM EXC 125
Brand	KTM
Model	125 EXC
Model Year	2010
Category	Enduro / Off-Road
Engine	Single-Cylinder 2-Stroke
Displacement	124.8 cc
Bore × Stroke	54.0 × 54.5 mm
Cooling System	Liquid-Cooled
Fuel System	Keihin PWK 36 S AG Carburetor
Transmission	6-Speed Manual
Starting System	Kick Starter
Clutch	Hydraulically Operated Wet Multi-Disc
Front Suspension	WP 4860 MXMA PA USD Fork, 48 mm
Rear Suspension	WP 5018 PDS DCC
Front Suspension Travel	300 mm
Rear Suspension Travel	335 mm
Front Tire	90/90-21
Rear Tire	120/90-18
Front Brake	260 mm Single Disc
Rear Brake	220 mm Single Disc
Wheelbase	1,471 mm
Seat Height	985 mm
Ground Clearance	390 mm
Fuel Capacity	9.5 L
Weight Without Fuel	97 kg (214 lb)
Final Drive	Chain

Specifications are based primarily on KTM’s 2010 owner’s manual, with period specification data used to cross-check dimensions and weight.

⸻

Frequently Asked Questions About the KTM EXC 125

What engine does the 2010 KTM EXC 125 have?

The 2010 KTM EXC 125 uses a 124.8cc single-cylinder, liquid-cooled two-stroke engine with reed intake and exhaust control.

How many gears does the KTM EXC 125 have?

The 2010 model has a six-speed transmission.

How much does a 2010 KTM EXC 125 weigh?

Period specifications list the dry weight at approximately 97 kg (213.8 lb).

What suspension does the 2010 KTM EXC 125 use?

It uses WP USD front suspension with 48 mm forks and a WP PDS rear shock. KTM’s manual specifies 300 mm front and 335 mm rear suspension travel.

What size wheels does the KTM EXC 125 use?

The standard enduro configuration is a 21-inch front wheel and 18-inch rear wheel.

Is the 2010 KTM EXC 125 street legal?

Street legality depends on the specific motorcycle’s homologation, registration, equipment and local laws. Buyers should verify the VIN and local requirements before using the motorcycle on public roads. KTM’s documentation specifically distinguishes homologated and derestricted configurations.

Where can I find information about the KTM EXC 125?

KTM maintains an official parts and model information system where buyers can find model-specific component information for the 2010 KTM EXC 125. The official KTM parts finder can also be used to research compatible components and identify parts associated with this model.
